Introduction to Quarto

Author

Lifeng Ren

Published

September 13, 2023

1 Overview

Today, I am going to go over a software called Quarto that is developed by the same team that developed R Markdown. As you can guess for now, they are very similar with slight difference.
In this session, I am hoping to go over:
- What is Quarto, and why we should use it
- How to use Quarto to generate:
  - HTML documents
  - Reveal.js slides
  - Quarto website with GitHub Pages

1.1 What is Quarto

Quarto is an open-source scientific and technical publishing system to create dynamic content with Python, R, Stata, Julia with engines Jupyter, Knitr, and Observable.
Just like R Markdown, Quarto uses PanDoc to convert Markdown to LaTex, HTML, PDF, Word, etc.
In short: One document (.qmd), multiple languages, multiple outputs.

1.2 Why Quarto?

To keep your code and document in one place and make it reproducible. Most importantly, to make it open-sourced and shareable.
What if I am already using R Markdown, do I need to switch?
- Based on your needs. There are many discussions on this, and I am providing some blogs and articles that you can read to make your own decision.
  - With Quarto Coming, is R Markdown Going Away? No.
  - Notes on Changing from Rmarkdown/Bookdown to Quarto

1.3 Quarto Preview

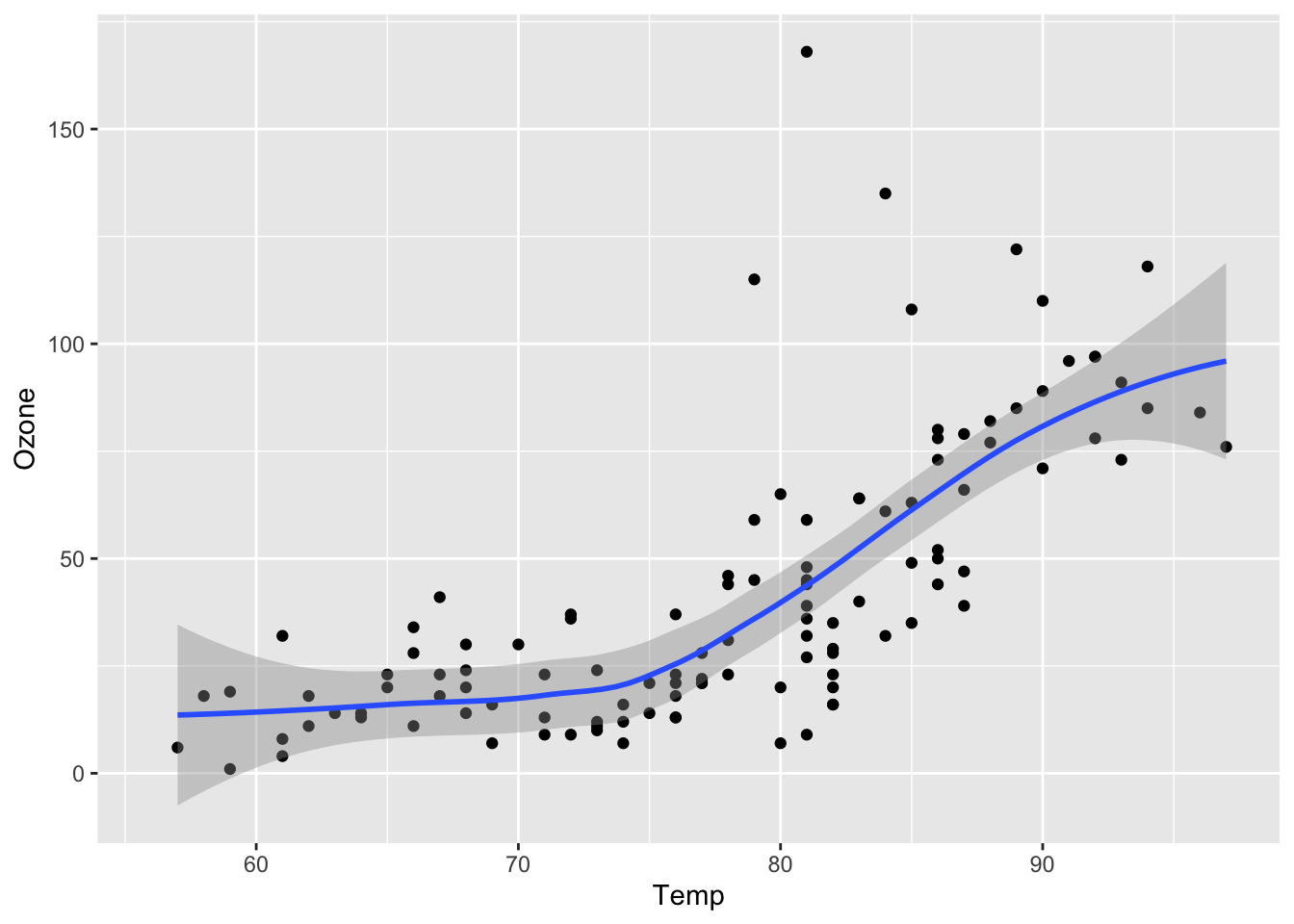

Figure 1 further explores the impact of temperature on ozone level.

Code

library(ggplot2)

ggplot(airquality, aes(Temp, Ozone)) +
  geom_point() +
  geom_smooth(method = "loess"
)

1.4 Install Quarto

To play with Quarto, you should firstly download Quarto from here, install it, and choose your favorite IDE to write Quarto documents. I am using VS Code with Quarto extension installed to show the demo today.

If you are using R Studio, once you installed Quarto, you do not need any extra steps. Just restart your R Studio and you are good to go.

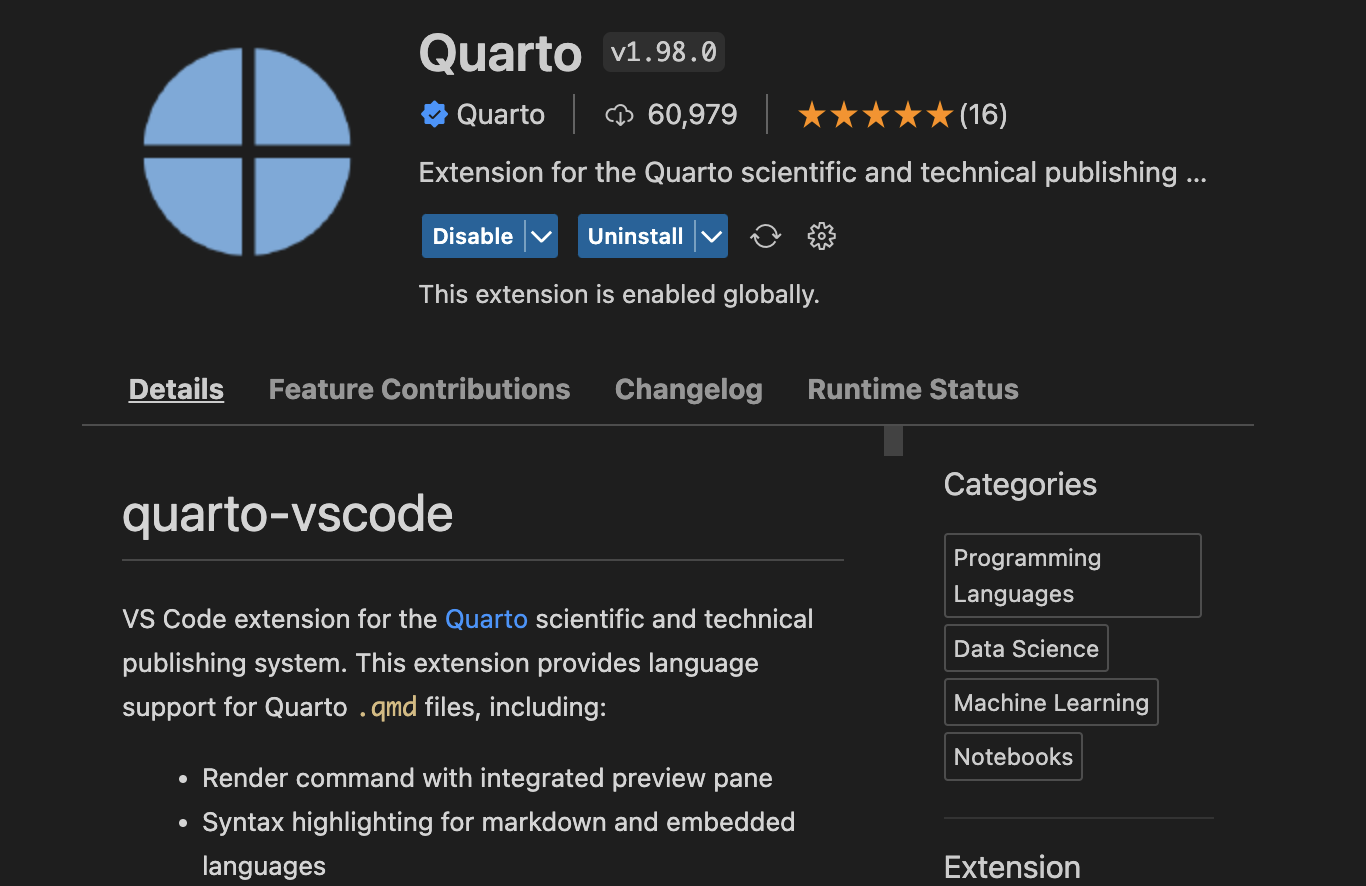

In the VS Code IDE, you need to install Quarto extension in the Extensions marketplace.

2 Generate your first `Quarto` document

As I mentioned above, Quarto can support many output formats. Today, I am going to show you how to generate HTML documents, Reveal.js slides, and Quarto website with GitHub Pages. For a full list of reference, please visit this page: https://quarto.org/docs/guide/.

2.1 Quarto Notebook

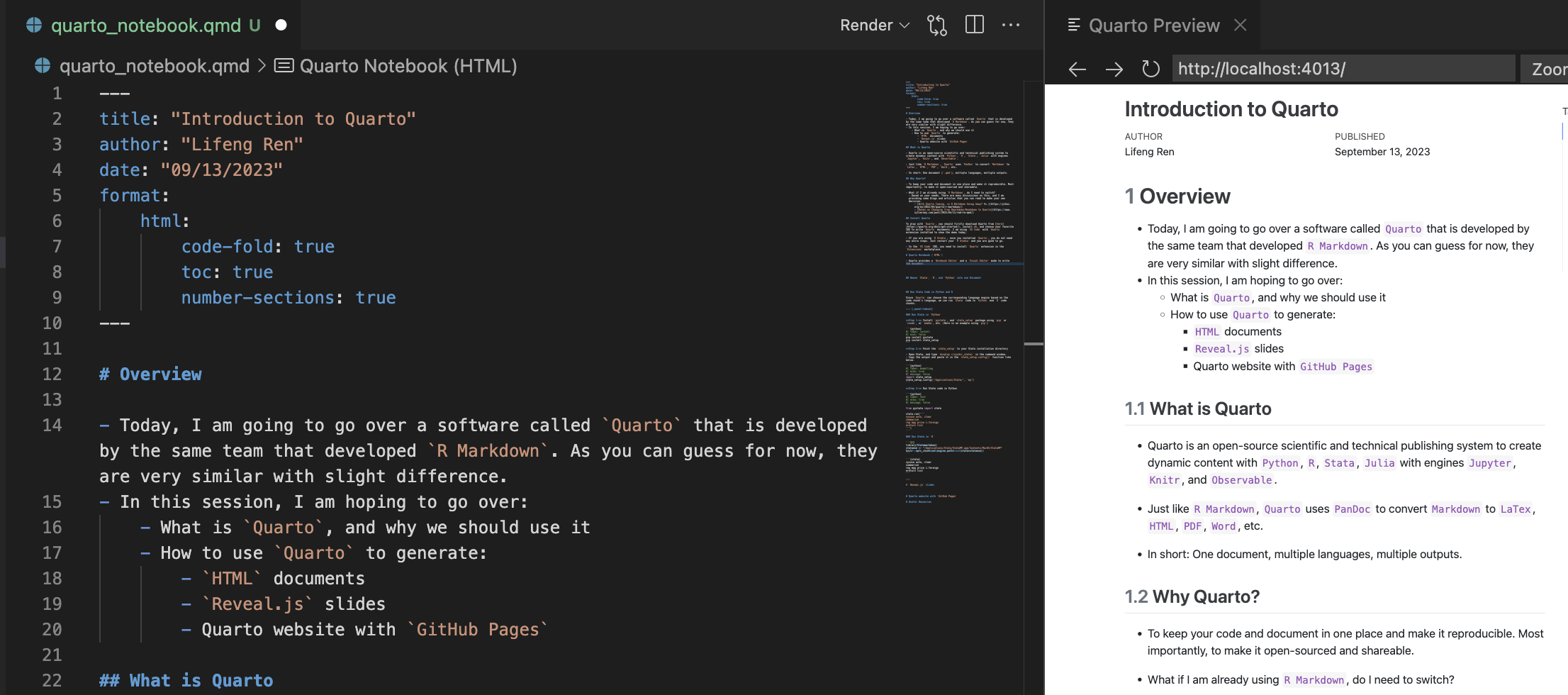

Quarto provides a Notebook Editor and a Visual Editor mode to write the document. (DEMO)
It can be rendered into different type of outputs. (DEMO for HTML, PDF, Word)
- For now, I will keep rendering it into HTML format.
Almost all syntax are the same for R Markdown and Quarto because they are based on Markdown. So, I won’t go over the syntax a lot today. You can find more information here: https://quarto.org/docs/authoring/markdown-basics.html
YAML header has some differences. Here is an example:

RMarkdown	Quarto
output: html_document	format: html
output: pdf_document	format: pdf
output: word_document	format: docx
`underscore`: `_` (e.g.: `number_sections: true`)	`dash`: `-` (e.g.: `number-sections: true`)
Rerender all the code	Rerender only when source changes

New Features in Quarto’s YAML header:

Code

execute:
  freeze: auto  # re-render only when source changes

Code Chunk options are changing

RMarkdown
Quarto

Code

    ```{r setup, include=FALSE}
    ```

Code

    ```{r}
    #| label: "setup"
    #| include: false
    ```

2.2 Weave `Stata`, `R`, and `Python` into one Document

2.2.1 Run Stata Code in Python and R

Since Quarto can choose the corresponding language engine based on the code chunk’s language, we can run Stata code in Python and R code chunks to weave all three languages coding into one document.

Run Stata in Python
Run Stata in R

Step 1: Install pystata, and stata_setup package using pip or conda, or mamba, etc. (Here is an example using pip)

Code

pip install pystata
pip install stata_setup

Step 2: Point the stata_setup to your Stata installation directory

Open Stata, and type display c(sysdir_stata) in the command window.
Copy the output and paste it in the stata_setup.config() function like below.

Code

import stata_setup
stata_setup.config('/Applications/Stata/', 'mp')


  ___  ____  ____  ____  ____ ®
 /__    /   ____/   /   ____/      17.0
___/   /   /___/   /   /___/       MP—Parallel Edition

 Statistics and Data Science       Copyright 1985-2021 StataCorp LLC
                                   StataCorp
                                   4905 Lakeway Drive
                                   College Station, Texas 77845 USA
                                   800-STATA-PC        https://www.stata.com
                                   979-696-4600        stata@stata.com

Stata license: Single-user 8-core , expiring  1 Jan 2025
Serial number: 501709301094
  Licensed to: Lifeng Ren
               APEC

Notes:
      1. Unicode is supported; see help unicode_advice.
      2. More than 2 billion observations are allowed; see help obs_advice.
      3. Maximum number of variables is set to 5,000; see help set_maxvar.

Step 3: Run Stata code in Python

Code

from pystata import stata

stata.run('''
sysuse auto, clear
summarize
reg mpg price i.foreign
ereturn list
''')


.
. sysuse auto, clear
(1978 automobile data)

. summarize

    Variable |        Obs        Mean    Std. dev.       Min        Max
-------------+---------------------------------------------------------
        make |          0
       price |         74    6165.257    2949.496       3291      15906
         mpg |         74     21.2973    5.785503         12         41
       rep78 |         69    3.405797    .9899323          1          5
    headroom |         74    2.993243    .8459948        1.5          5
-------------+---------------------------------------------------------
       trunk |         74    13.75676    4.277404          5         23
      weight |         74    3019.459    777.1936       1760       4840
      length |         74    187.9324    22.26634        142        233
        turn |         74    39.64865    4.399354         31         51
displacement |         74    197.2973    91.83722         79        425
-------------+---------------------------------------------------------
  gear_ratio |         74    3.014865    .4562871       2.19       3.89
     foreign |         74    .2972973    .4601885          0          1

. reg mpg price i.foreign

      Source |       SS           df       MS      Number of obs   =        74
-------------+----------------------------------   F(2, 71)        =     23.01
       Model |  960.866305         2  480.433152   Prob > F        =    0.0000
    Residual |  1482.59315        71  20.8815937   R-squared       =    0.3932
-------------+----------------------------------   Adj R-squared   =    0.3761
       Total |  2443.45946        73  33.4720474   Root MSE        =    4.5696

------------------------------------------------------------------------------
         mpg | Coefficient  Std. err.      t    P>|t|     [95% conf. interval]
-------------+----------------------------------------------------------------
       price |   -.000959   .0001815    -5.28   0.000     -.001321    -.000597
             |
     foreign |
    Foreign  |   5.245271   1.163592     4.51   0.000     2.925135    7.565407
       _cons |   25.65058   1.271581    20.17   0.000     23.11512    28.18605
------------------------------------------------------------------------------

. ereturn list

scalars:
                  e(N) =  74
               e(df_m) =  2
               e(df_r) =  71
                  e(F) =  23.00749448574634
                 e(r2) =  .3932401256962295
               e(rmse) =  4.569638248831391
                e(mss) =  960.8663049714787
                e(rss) =  1482.593154487981
               e(r2_a) =  .3761482982510528
                 e(ll) =  -215.9083177127538
               e(ll_0) =  -234.3943376482347
               e(rank) =  3

macros:
            e(cmdline) : "regress mpg price i.foreign"
              e(title) : "Linear regression"
          e(marginsok) : "XB default"
                e(vce) : "ols"
             e(depvar) : "mpg"
                e(cmd) : "regress"
         e(properties) : "b V"
            e(predict) : "regres_p"
              e(model) : "ols"
          e(estat_cmd) : "regress_estat"

matrices:
                  e(b) :  1 x 4
                  e(V) :  4 x 4
               e(beta) :  1 x 3

functions:
             e(sample)

.

Code

library(Statamarkdown)

Stata found at /Applications/Stata/StataMP.app/Contents/MacOS/StataMP

The 'stata' engine is ready to use.

Code

stataexe <- "/Applications/Stata/StataMP.app/Contents/MacOS/StataMP"
knitr::opts_chunk$set(engine.path=list(stata=stataexe))

Code

sysuse auto, clear
summarize
reg mpg price i.foreign
ereturn list

(1978 automobile data)

    Variable |        Obs        Mean    Std. dev.       Min        Max
-------------+---------------------------------------------------------
        make |          0
       price |         74    6165.257    2949.496       3291      15906
         mpg |         74     21.2973    5.785503         12         41
       rep78 |         69    3.405797    .9899323          1          5
    headroom |         74    2.993243    .8459948        1.5          5
-------------+---------------------------------------------------------
       trunk |         74    13.75676    4.277404          5         23
      weight |         74    3019.459    777.1936       1760       4840
      length |         74    187.9324    22.26634        142        233
        turn |         74    39.64865    4.399354         31         51
displacement |         74    197.2973    91.83722         79        425
-------------+---------------------------------------------------------
  gear_ratio |         74    3.014865    .4562871       2.19       3.89
     foreign |         74    .2972973    .4601885          0          1

      Source |       SS           df       MS      Number of obs   =        74
-------------+----------------------------------   F(2, 71)        =     23.01
       Model |  960.866305         2  480.433152   Prob > F        =    0.0000
    Residual |  1482.59315        71  20.8815937   R-squared       =    0.3932
-------------+----------------------------------   Adj R-squared   =    0.3761
       Total |  2443.45946        73  33.4720474   Root MSE        =    4.5696

------------------------------------------------------------------------------
         mpg | Coefficient  Std. err.      t    P>|t|     [95% conf. interval]
-------------+----------------------------------------------------------------
       price |   -.000959   .0001815    -5.28   0.000     -.001321    -.000597
             |
     foreign |
    Foreign  |   5.245271   1.163592     4.51   0.000     2.925135    7.565407
       _cons |   25.65058   1.271581    20.17   0.000     23.11512    28.18605
------------------------------------------------------------------------------


scalars:
                  e(N) =  74
               e(df_m) =  2
               e(df_r) =  71
                  e(F) =  23.00749448574634
                 e(r2) =  .3932401256962295
               e(rmse) =  4.569638248831391
                e(mss) =  960.8663049714787
                e(rss) =  1482.593154487981
               e(r2_a) =  .3761482982510528
                 e(ll) =  -215.9083177127538
               e(ll_0) =  -234.3943376482347
               e(rank) =  3

macros:
            e(cmdline) : "regress mpg price i.foreign"
              e(title) : "Linear regression"
          e(marginsok) : "XB default"
                e(vce) : "ols"
             e(depvar) : "mpg"
                e(cmd) : "regress"
         e(properties) : "b V"
            e(predict) : "regres_p"
              e(model) : "ols"
          e(estat_cmd) : "regress_estat"

matrices:
                  e(b) :  1 x 4
                  e(V) :  4 x 4
               e(beta) :  1 x 3

functions:
             e(sample)

3 `Reveal.js` slides

I normally has a document first and then copy and paste it into a new Quarto document to generate Reveal.js slides. But you can also just change a few things in the YAML header to generate Reveal.js slides.

The key thing we need to modify is the format in the YAML header. Here is an example:

Code

---
title: "Introduction to Quarto"
author: "Lifeng Ren"
date: "09-13-2023"
format:
    revealjs: # revealjs slides
        theme: default # default, beige, sky, night, serif, simple, solarized
        chalkboard: true # add a chalkboard to the slides
        scrollable: true # make the slides scrollable: this is useful for long slides (or sometimes you directly change the yaml header from the html document)
---

3.1 Key Features

Incremental Lists

Code

## Slide 1
::: {.incremental}
-   Item 1
-   Item 2
:::

Multiple Columns

Code

:::: {.columns}

::: {.column width="40%"}
Left column
:::

::: {.column width="60%"}
Right column
:::

::::

Code Highlight

Suppose we would like to highlight the following code

ax.plot(theta, r)
x.grid(True)

We could use the following code to highlight the code in a presentation

Code

    ```{.python code-line-numbers="7,9"}
    import numpy as np
    import matplotlib.pyplot as plt

    r = np.arange(0, 2, 0.01)
    theta = 2 * np.pi * r
    fig, ax = plt.subplots(subplot_kw={'projection': 'polar'})
    ax.plot(theta, r)
    ax.set_rticks([0.5, 1, 1.5, 2])
    x.grid(True)
    plt.show()
    ```

4 Quarto website with `GitHub Pages`

4.1 Personal Website (DEMO)

In order to generate a personal website hosted by GitHub, we need to do the following things:

A github account
Create a new repository with the name of username.github.io (e.g.: lfr00154.github.io)
- If you already have your personal website and you can add create a repository with a different name and link this repository to your personal website. For example, I would use quarto_demosite as the repository name.
Create a new Quarto website project.
- In the _quarto.yml file, add output-dir: docs under the project section.
- Render this file and there shall be a local static website shown on your IDE/browser.
Go to GitHub and upload the whole project to the repository you just created.
Go to the repository’s Settings and scroll down to the GitHub Pages section. Choose main branch - docs, as the source and click Save. Then you will see the link to your personal website.
